Productinformation

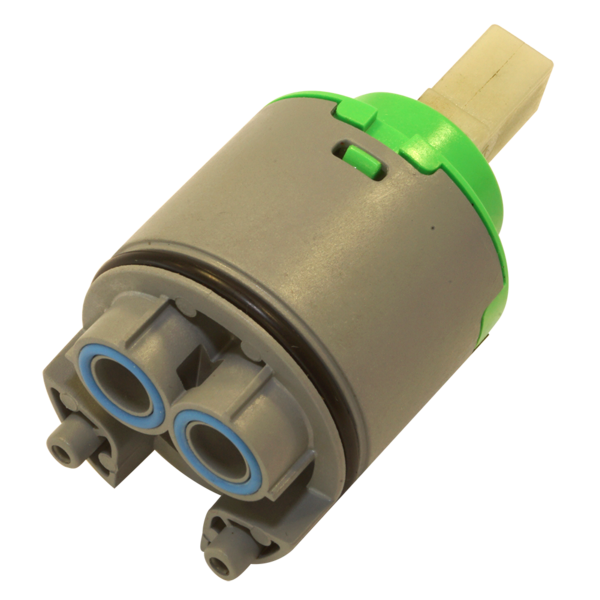

Ceramic Cartridge for Mixer Taps.
Is your tap suffering from a leaking spout or stiff operation? With this high-quality ceramic cartridge, you can restore the smooth operation and watertight seal of your mixer tap in no time.
This cartridge is manufactured from durable materials and is specifically designed for intensive use in various professional and domestic faucet models produced from 2025.
Technical Dimensions & Specifications
To ensure the correct fit, please use the following measurements (in mm):
-
Housing diameter: 40 mm D
-
Total height: 75 mm H3
-
Housing height (without pins/lever): 43 mm H1
-
Base width (foot): 54 mm H2
-
Distance between positioning pins: 10 mm H4
-
Pin diameter: 10.3 mmH5
-
Weight: approx. 0.08 kg
Broad Compatibility
This part is suitable as a replacement for the following part numbers (models from 2025 ):
-
Series: 462406, 462408, 462410, 462412
-
Series: 463032, 463038, 463040, 463050, 463051
-
Series: 463062, 463064, 463066, 463074, 463086, 463088
-
Series: 463213, 463214, 463216, 463218, 463227, 463228, 463234
Why choose this cartridge?
-
Durable Ceramic: The internal discs are resistant to extreme temperature fluctuations and limescale buildup.
-

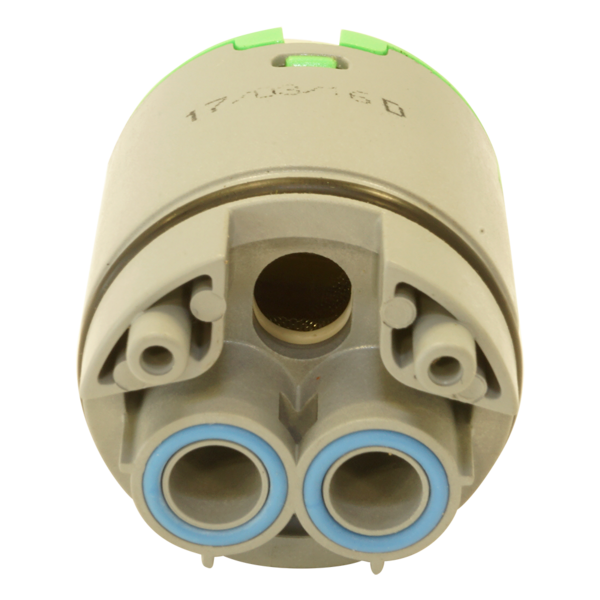

Easy Assembly: The base is equipped with two precise positioning pins for stable and error-free installation.
-
Leak-proof Design: Includes fitted rubber seals for an immediate, watertight seal.
-
Smooth Operation: Minimizes friction when turning and lifting the faucet handle.
Please note: We recommend shutting off the main valve before disassembly. Always compare the dimensions of your old cartridge with the specifications above.
